Small and light enough to attach to a finger or thumb. Ergonomic design allows for comfortable activation while in the hand, mounted on a table, or on a positioning arm. Low profile makes it ideal for anyone with limited finger movement. Rugged design can withstand the heaviest hitter. Reusable sticky base is easily cleaned and doesn’t leave a film. Two screw mounting for secure placement. Include stickers in 5 colors for top of switch.
Ultra Light 1 HD Features
Ultra Light 1 HD Technical Specifications
Connector: 1/8 inch (3.5mm) Right angle mono plug
Cable Length: 6 foot (~1.8 meters)
Activation Force: Max / Min .702 ounces (20g ) / 2.5 ounces (70g)
Travel before Activation (in/cm): .09 inches (2.3mm) depending on how you adjust it
Electrical Rating: AC 125V 1A
Contact Rating: 0.1A @ 48VDC; 0.1A@125VAC
Electrical life cycles: 1,000,000
Mechanical life cycles: min 1,000,000
Insulation Resistance: > 100MΩ DC250V
Withstand Voltage: AC250V 1 minute
Contact Resistance: < 300mΩ
Ambient Temperature: -25°C to 70°C

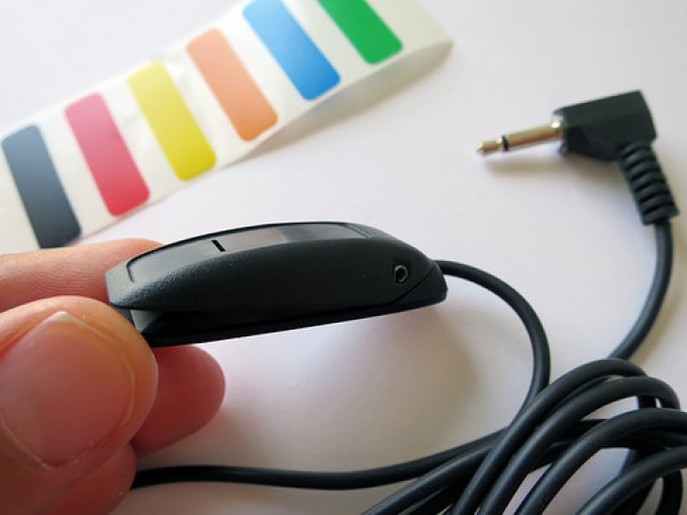

The Ultra Light 1 HD Finger Switch is a very small (smaller than your thumb) switch that requires very little pressure and gives great tactile and audible feedback. It is easily mountable within reach of a finger, and its small size and low price let you mount several switches within easy reach of one or more fingers. Comes with 6 interchangeable color panels.
The Ultra Light 1 HD Finger Switch fits like a ring, is adjustable, with light activation force and tactile feedback, It is perfect for someone with limited range of motion and best of all it is affordable!
